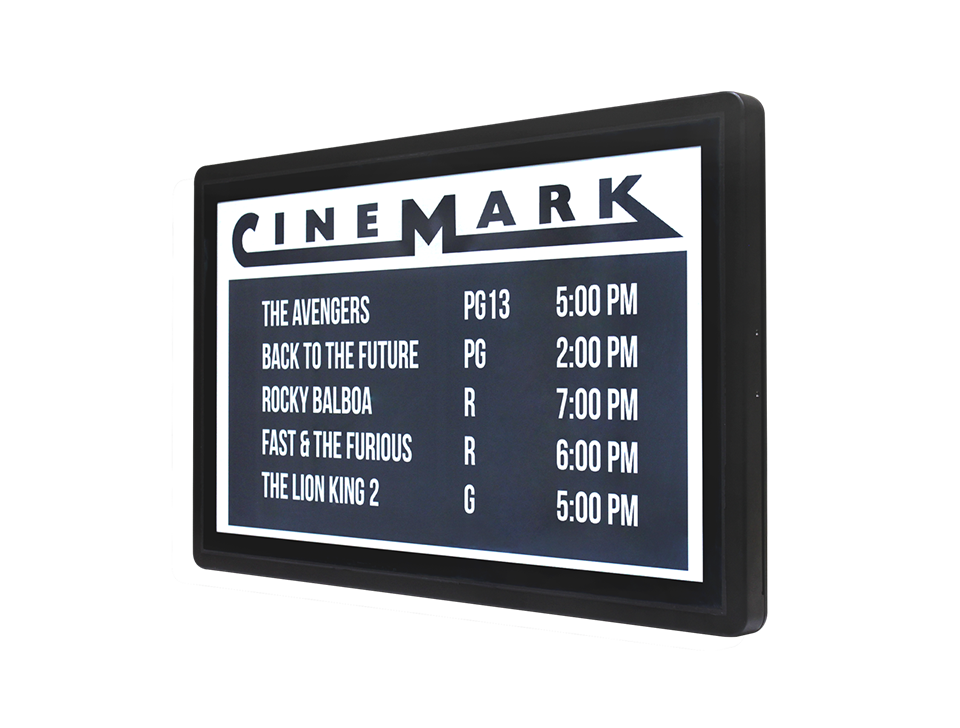

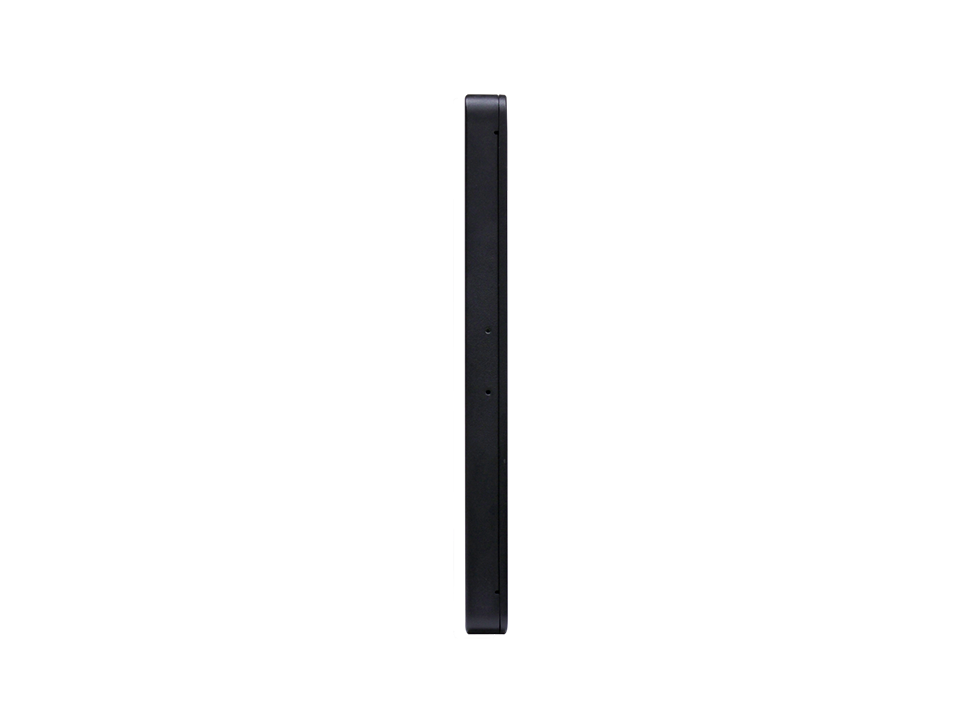

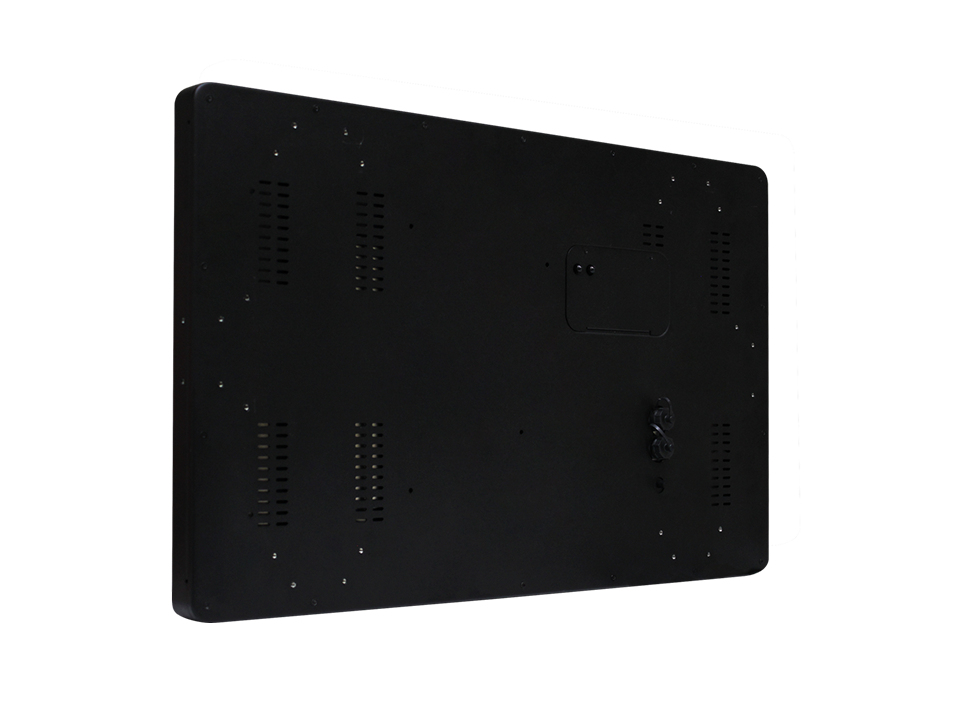

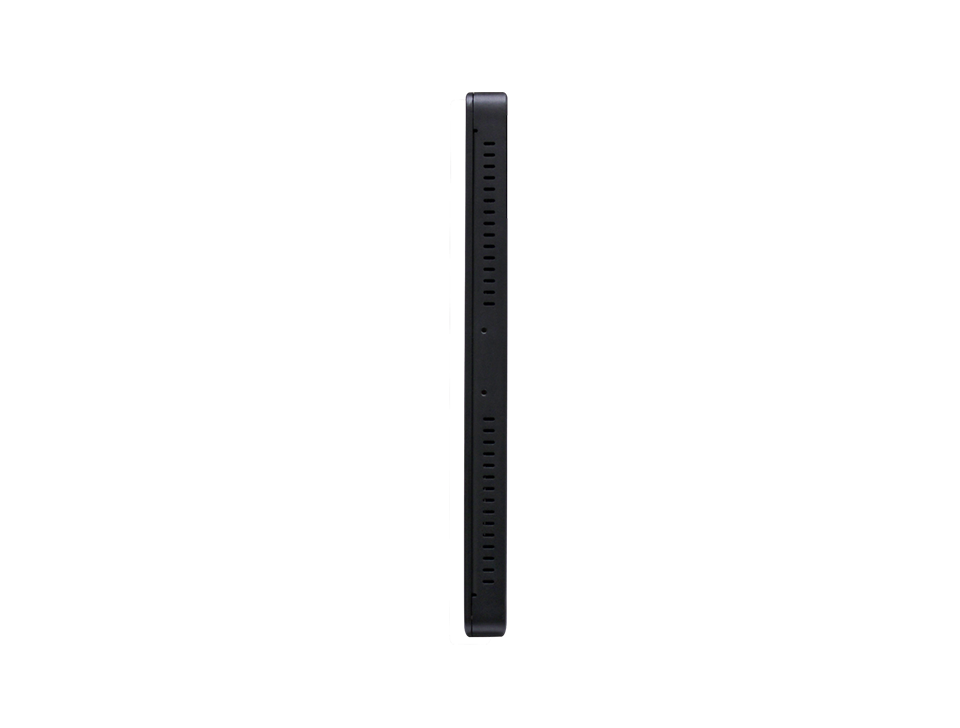

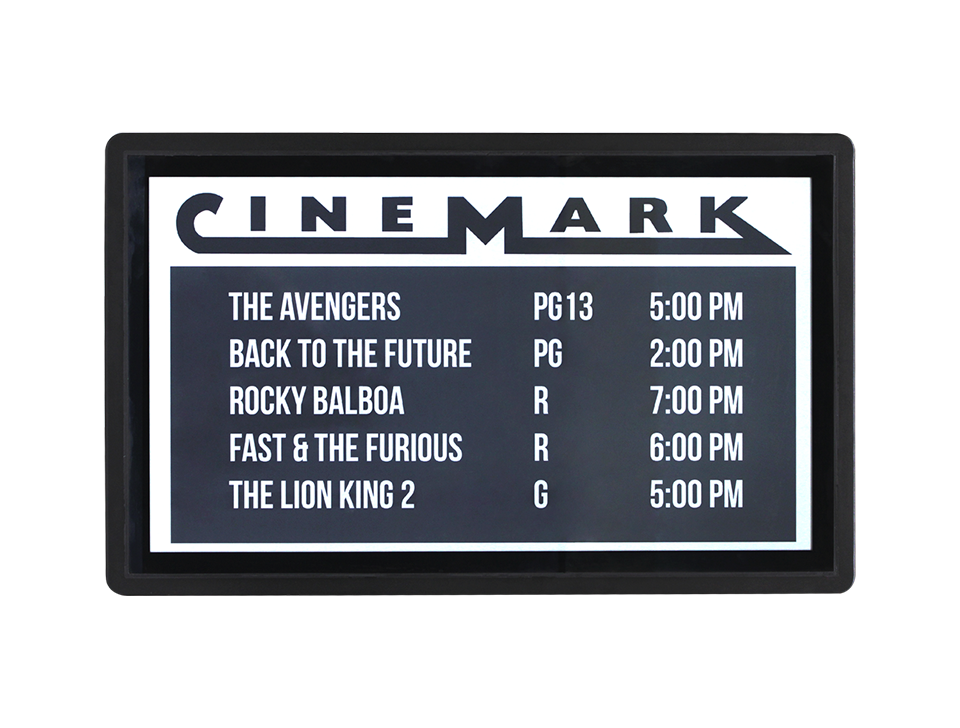

EPD320M-OE

(32-INCH / MONOCHROME)

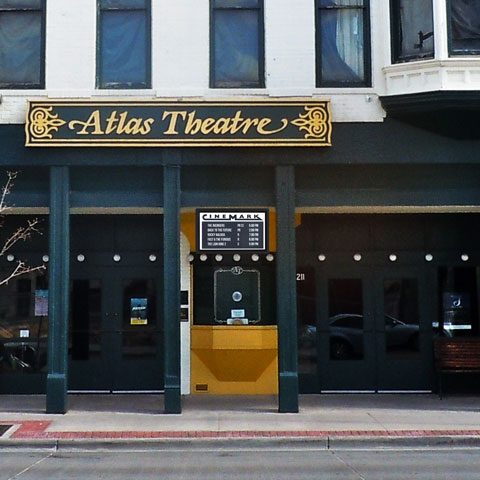

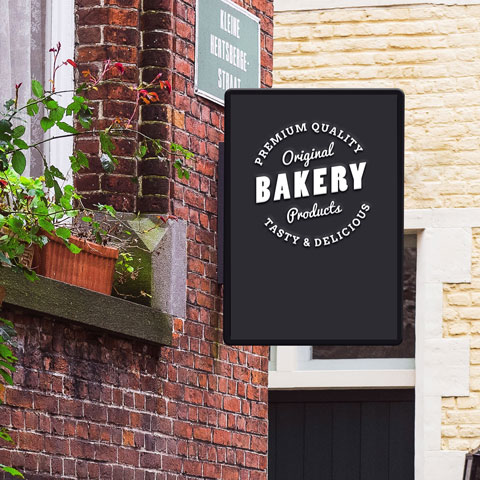

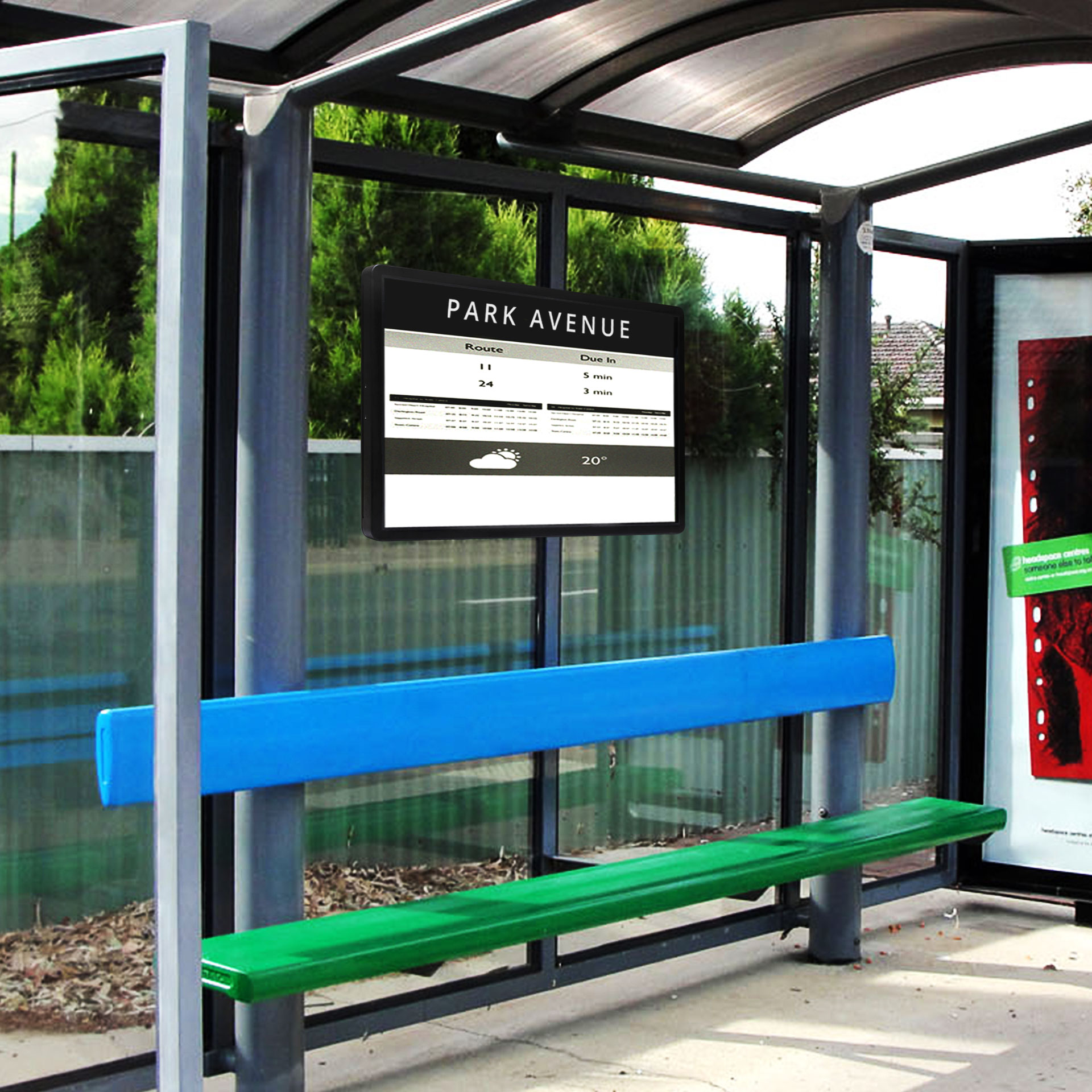

From TeamUC comes the EPD320M-OE 32” Outdoor Electronic Paper Display. The EPD320M-OE is a high contrast display that implements the best of both worlds – digital updates and low power consumption, making it ideal for a wide variety of outdoor applications. From bus stops and train stations that need to display live schedule updates or maps, to advertising and informational displays in cities and neighborhoods, the EPD320M-OE is designed to cut down on both maintenance and installation costs while increasing sustainability efforts.



Utilizing E Ink paper display technology, the screen is a new experience. It leverages the power of a small LED front light to provide screen clarity that is gentle on the eyes yet doesn’t sacrifice quality maintaining excellent readability in all light conditions. With the EPD320M-OE, you will be able to future-proof infrastructure and your business with confidence.

FEATURES:

  • Designed for outdoor applications
  • Low Power
  • Easy installation
  • Remotely updateable
  • Print-like appearance
  • Non-glare background
  • High contrast



APPLICATIONS

SPECIFICATIONS

CONFIGURATIONS

PACKAGING

RELATED ITEMS

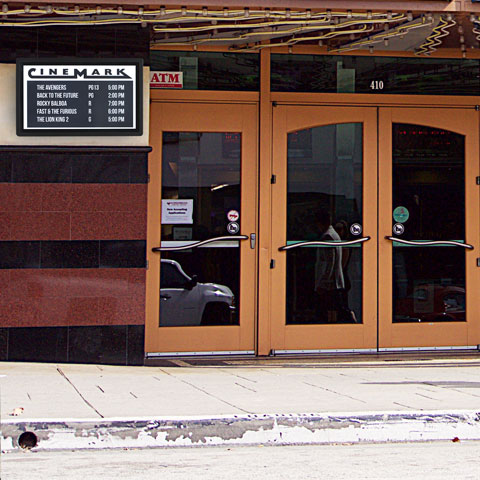

APPLICATIONS

SPECIFICATIONS

HARDWARE DESCRIPTION
 Size  32″
Screen Technology E Ink Monochrome
Resolution 2560 x 1440
Color 16 Gray Level
Contrast Ratio 12:1
Flash Size eMMC 8G
DDR DDR 2 LP 512MB
G-Sensor For Portrait Mode & Landscape Mode
Button Power on/off. Reset
HARDWARE DESCRIPTION
Connectivity USB, LAN, Wifi, 4G LTE
Front Light Power Usage Adjustable 1W(h)~4W(h)
OS Android 4.4 or up
Type DC (12V/4A)
Bezel Width 21mm/21mm/21mm/21mm (Left/Right/Top/Bottom)
Mounting Pipe Clamp
External Dimensions 781 x 479.4 x 38 mm
Weight 5Kg
Operating Temperture 0ºC~50ºC

CONFIGURATIONS

MODEL DESCRIPTION
 EPD320M-OE     32” Outdoor Monochrome EPD W/5mm tempered glass w/o front light, Wifi/BT/Ethernet/LTE interface, Complete unit with enclosure

INSIDE THE BOX



   EPD320M-OE
   Weather proof LTE antenna
   GPS Antenna
   USB cable
   LAN cable
   Converter cable
   Pole mount
   3M Tape
   Extension bolt
   Charging cable
   Power adapter

DIMENSIONS



   25″(W) x 44″(L) x 6″(H)
   Weight: 46 lbs.
