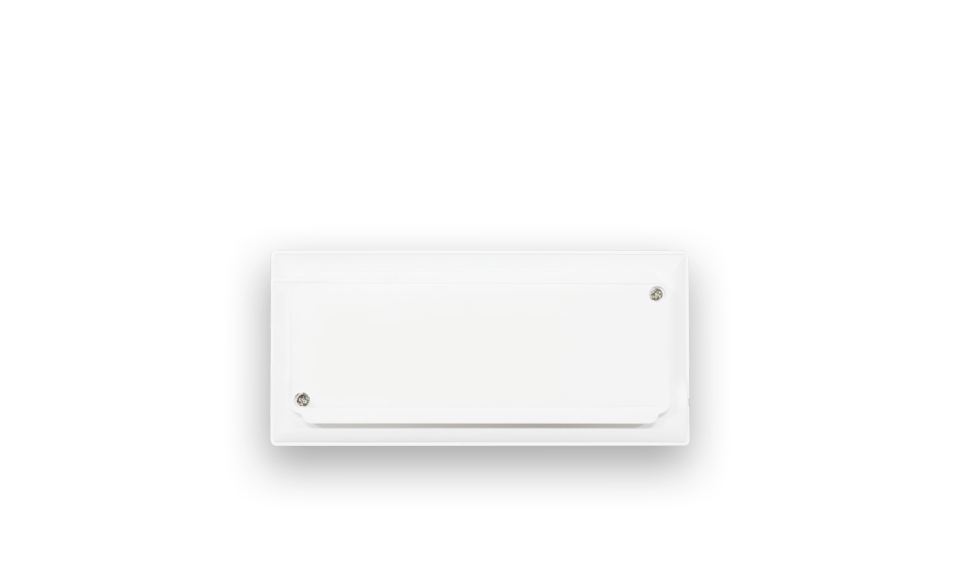

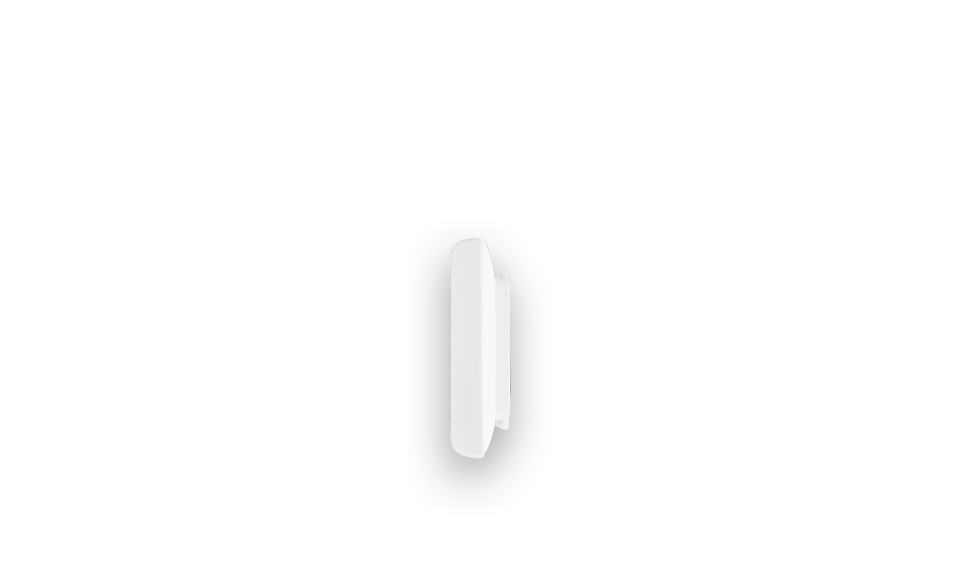

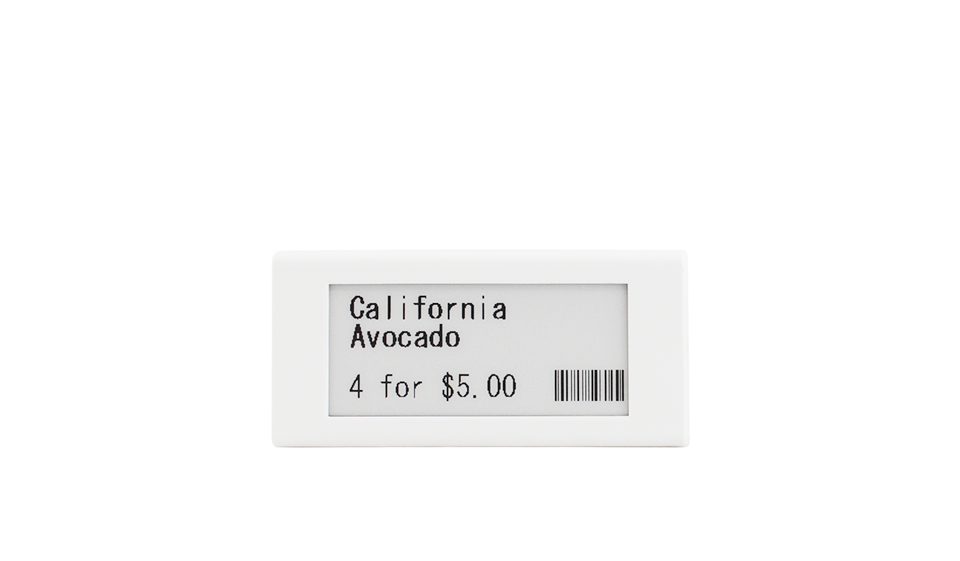

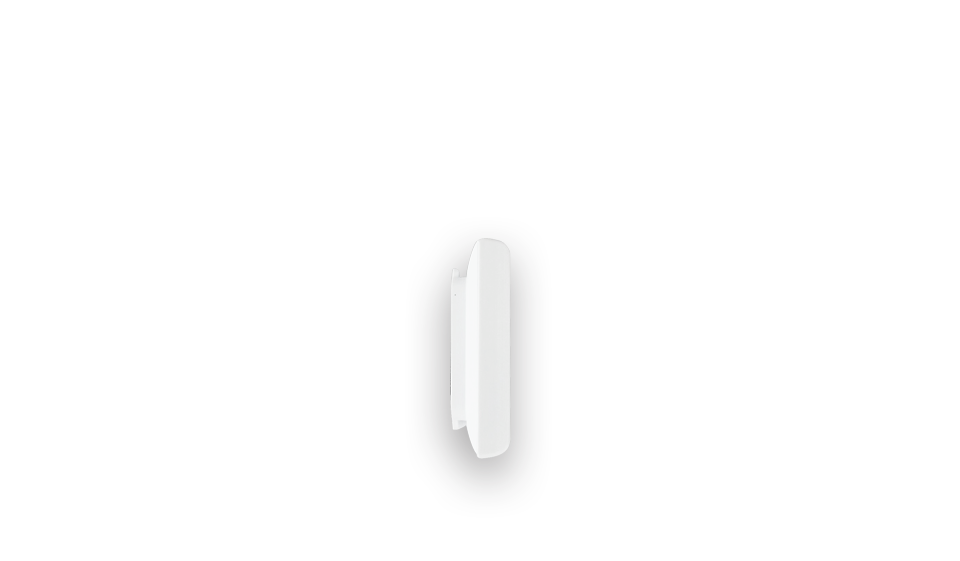

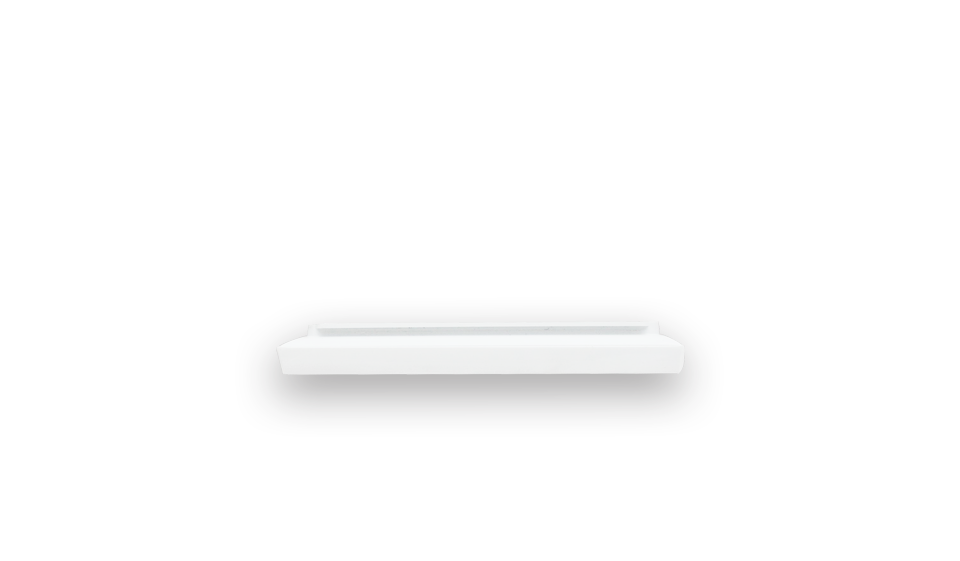

ESL290M

(2.9-INCH / MONOCHROME)

The TeamUC 2.9″ Electronic Shelf Tag ESL290M is a low-powered, easy-to-read tag whose display can easily be updated from a remote area such as a back office or a central location. Embedded with E Ink technology, its screen is gentle on the eyes and is easy-to-read even under direct sunlight. The ESL290M is environment-friendly because it saves paper by not printing tags as well as business-friendly because labor isn’t needed for manually changing them.

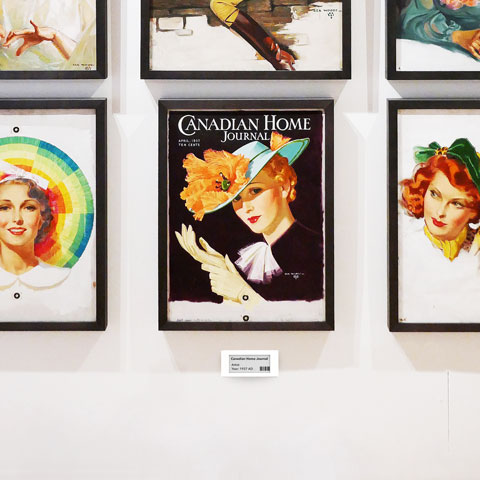

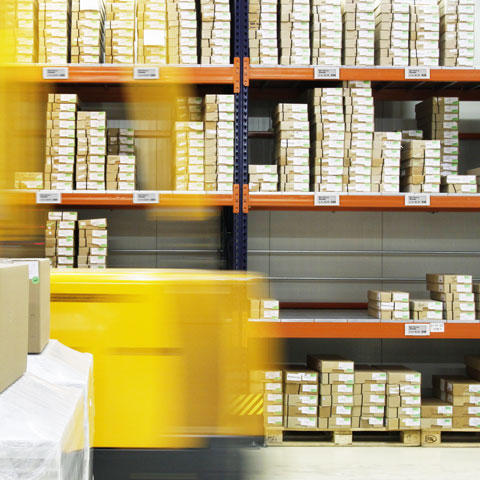

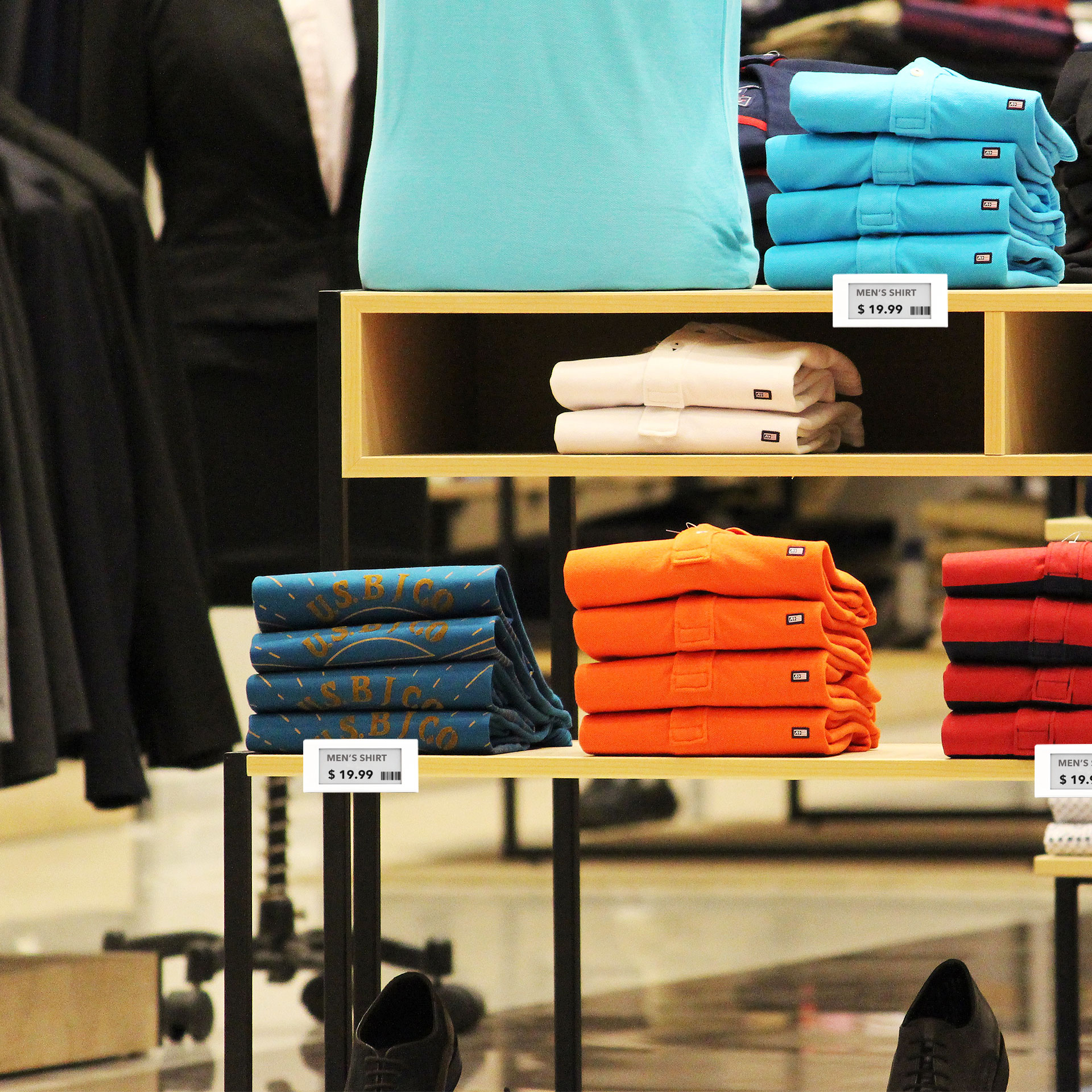

The ESL290M is perfectly suited for use in retail by giving businesses the ability to update pricing as often as they need, and to display promotions, inventory levels, and more. For those in the packaging and shipping industry, the ESL290M can be used to efficiently manage their inventories and transform their workspace into a Smart Warehouse. Usher in the future with this next generation tag.

FEATURES:

  • Color: Black / White
  • Size: 2.9-Inch
  • 296 x 128 Resolution
  • Long lifetime with multiple updates per day.
  • Wide view angle, clear view under sunlight.
  • Built-in battery monitor.
  • Dimensions: 93 mm x 43.5 mm x 12.2 mm



APPLICATIONS

SPECIFICATIONS

CONFIGURATIONS

PACKAGING

RELATED ITEMS

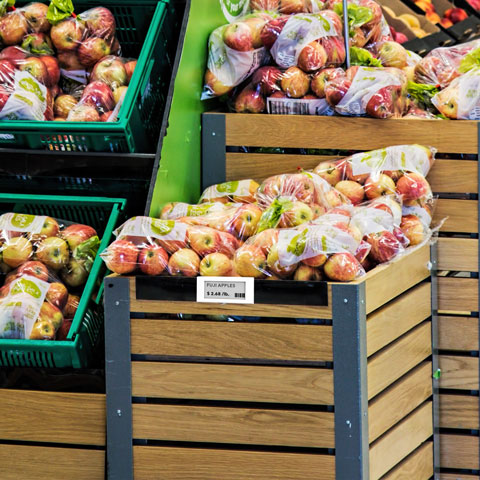

APPLICATIONS

SPECIFICATIONS

HARDWARE DESCRIPTION
 Display 2.9″
Resolution  296 x 128
Color Black/White
DPI 112
Wireless Interface Ziglee (2.4GHz)
RSSI (Radio Strength Index) On display while deployment
HARDWARE DESCRIPTION
Battery Type CR 2032*3Pcs
Battery Changeable Yes
Operating Voltage 3V
Operating Temperature 0~40°C
Dimension (WxHxD mm) 93.3×43.5×12.2 mm
Weight 39.4g/0.087lb (including battery)

CONFIGURATIONS

MODEL DESCRIPTION
 ESL290M 2.9”     Price Tag Monochrome

DIMENSIONS



   3″(W) x 4.5″(L) x 0.5″(H)
   Weight: 0.2 lbs.
