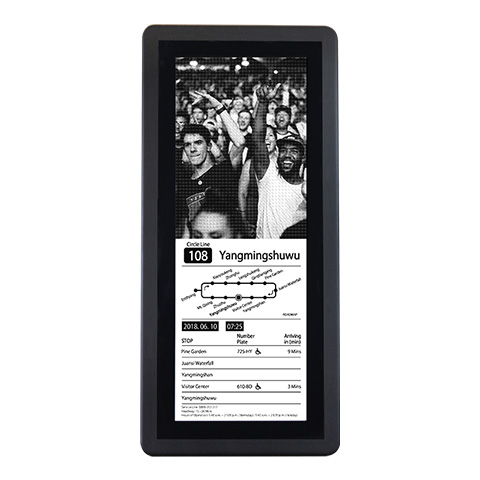

The EPD320M-IE is perfectly suited for implementation under various environments such as Menu/Message boards in retail, Directory/Info boards in Healthcare/Medical, Real-time route updates at bus stops, and also for special types of writing such as Calligraphy. You just can’t go wrong with the EPD320M-IE from TeamUC.




| HARDWARE | DESCRIPTION |
|---|---|
| Size | 32″ |
| Screen Technology | E Ink Monochrome |
| Resolution | 2560 x 1440 |
| Color | 16 Grey Level |
| Contrast Ratio | 13:1 |
| Flash Size | eMMC 8G |
| DDR | DDR2 512MB |
| G-Sensor | For Portrait Mode & Landscape Mode |
| Battery (Optional) | Detachable rechargeable lithium battery 10,200mAh |
| HARDWARE | DESCRIPTION |
|---|---|
| Button | Power On/Off/Reset |
| Connectivity | Wi-Fi, BT4.1, Ethernet |
| OS | Android 4.4 or up |
| Type | DC (12V/4A) |
| Bezel Width | 5.7mm/5.7mm/5.7mm/15mm (Left/Right/Top/Bottom) |
| Wall Mount | VESA Mount 200 mm x 200 mm |
| External Dimensions | 703.6 x 410.5 x 8.8 mm (with 2mm tempered glass) |
| Weight | 6.5 Kg/14 Lb |
| Operating Temperature | 0°C~50°C |
| MODEL | DESCRIPTION |
|---|---|
| EPD320M-IE | 32” Indoor Monochrome EPD complete unit enclosure / 2mm tempered glass w/o front light, Wifi/BT/Ethernet/LTE interface |
